This code would easily pass a cursory review:

const response = await fetch('https://example.com/flags.json')
const flags = await response.json()
startServer(flags)

Then one day the endpoint returns a 500, flags becomes { error: 'Internal Server Error' }, no key matches a real option, and the server silently starts with every default.

fetch doesn’t reject on HTTP errors. It resolves either way, and nothing in the interface tells you to check response.ok. The bug isn’t that you decided to skip error handling. You never realized there was a decision.

Everyone has used an interface that threw them into the Pit of Despair like this. I’ve hit the bottom enough times to notice the pattern.

For each concern an interface exposes, it either forces you to confront it or allows you to inadvertently ignore it. Ignoring a confronted concern is an intentional decision, but ignoring an unknown one commits you to assumptions you didn’t know you made. That signaling determines how the interface fails: by decision or by accident.

Once you see interfaces this way, many familiar design questions become the same. Throw or return an error value? Required parameter or default? Object or union type? Each asks how loudly the interface should signal a concern. Soon you’ll have principles for answering.

Concern signaling

I’m borrowing the signaling terminology from telecommunications.

In-band signaling means control information travels in the same channel as data. Out-of-band signaling uses a separate channel for control information.

The distinction maps cleanly onto interface concerns. Every interface has the same two channels, and each of its concerns travels on one of them: the channel the user must confront to use the interface at all, or the channel off to the side that they can miss.

Error handling

Consider a function that returns a union of success and failure. The caller cannot use the function without being aware of the possibility of an error.

For example, returning Rust’s Result<T, E> type forces the caller to explicitly handle the error:

fn parse_config(raw: &str) -> Result<Config, ParseError> { ... }

// Trying to use the result without unwrapping would trigger a type error.
// If the caller decides to ignore the error, then it's intentional.
let result = parse_config(raw);
match result {
    Ok(config) => start_server(config),
    Err(e) => eprintln!("{e}"),
}

In this case the error is in-band. Confronting it is inseparable from using the interface.¹

Now consider a function that returns Config and throws on failure. The caller can use the Config directly because the exception requires no acknowledgment.

For example, throwing JavaScript’s Error allows the caller to proceed without confronting the error:

/** @throws Error for invalid configs. */
function parseConfig(raw: string): Config {
  // ...
}

// The caller may inadvertently ignore the error if they did not read the
// function documentation and are unaware it can throw.
const config = parseConfig(raw)
startServer(config)

In this case the error is out-of-band. Confronting it requires discipline, and a caller can slip past it without knowing it exists.

A function that throws a checked exception moves the error back in-band. The caller is forced to explicitly catch or propagate the error.

For example, Java’s throws keyword makes error handling in-band:

Config parseConfig(String raw) throws ParseException {
    // ...
}

// The caller is forced to handle the checked exception. This won't compile
// without either catching or declaring `throws ParseException`.
void start(String raw) throws ParseException {
    Config config = parseConfig(raw);
    startServer(config);
}

However, a concern that’s more in-band than it deserves backfires because acknowledgment becomes a reflex. Java programmers infamously silence checked exceptions using empty catch blocks, unchecked rethrows, or throws Exception clauses.

That’s worse than out-of-band. The code only looks like it confronted the concern.

Rust’s success suggests Java’s failure was ergonomics, not confrontation. Result forces the same acknowledgment, but it’s pleasant to handle or propagate.

Checked exceptions also reveal that the channel carrying the data is not the same as the channel that carries the concern. A checked exception travels outside the return value, yet the concern is in-band. The inverse mismatch exists too: in-band data does not imply in-band concerns.

For example, C-style -1 sentinel values are in-band data-wise, but out-of-band concern-wise because the user could overlook checking for the sentinel:

// `open` signals failure via a -1 return value. The caller may not check for -1
// if they're unaware it's a possible return value.
int fd = open("config.json", O_RDONLY);
// Undefined behavior if `fd == -1`.
read(fd, buf, sizeof(buf));

Naming

Names can move concerns in-band or out-of-band.

For example, Java’s HashSet has no guaranteed iteration order, but the name only describes the implementation, not the ordering property. The iteration order can coincidentally match insertion order for small sets, so a user could depend on it without realizing:

// May print in insertion order for small sets, tempting the user to depend on
// an ordering that is not guaranteed.
HashSet<Integer> set = new HashSet<>(List.of(3, 1, 4, 1, 5));
for (int value : set) {
    System.out.println(value);
}

Java’s TreeSet moves the ordering concern in-band. The name signals a tree structure, which strongly implies sorted iteration, so the user can infer that ordering is part of the contract:

// The name hints at sorted order. The user is more likely to recognize that
// ordering is a deliberate property.
TreeSet<Integer> set = new TreeSet<>(List.of(3, 1, 4, 1, 5));
for (int value : set) {
    System.out.println(value);
}

Union types

Unions are the usual tool for making illegal states unrepresentable, and that moves concerns in-band as a byproduct because each variant is a case the user must consider.

But legality and signaling are independent. A union can move a concern in-band even when every state is already legal.

For example, every combination of property values on JavaScript’s KeyboardEvent type is valid, yet it hides a concern:

interface KeyboardEvent extends UIEvent {
  // Which primary key is pressed.
  key: string

  // Secondary modifier key flags. All value combinations are valid.
  altKey: boolean
  ctrlKey: boolean
  metaKey: boolean
  shiftKey: boolean

  // Other irrelevant properties...
}

The primary property users look for and access is key because it’s a keyboard event. They could easily forget to check for modifier keys, resulting in logic that’s unintentionally broad. The modifier concern is out-of-band. The flags are not the event’s primary data, so they don’t reliably capture the user’s attention.

A more in-band presentation of the modifier concern might look like this:

type KeyboardEvent =
  | {
      kind: 'single-key'
      key: string
    }
  | {
      kind: 'modified-key'
      primaryKey: string
      altKey: boolean
      ctrlKey: boolean
      metaKey: boolean
      shiftKey: boolean
    }

In TypeScript, the user cannot access any data on this type other than kind. They will be forced to consider the single and modified key cases individually. There were no illegal states to eliminate, but switching to a union still affected signaling.²

Note

It’s important that key and primaryKey do not share a name in the TypeScript example because properties common to all union variants are accessible on the union itself. If they were both called key, then the concern would move out-of-band because the user could access key without noticing the other properties.

Required parameters

Required parameters can move concerns in-band by removing assumptions.

For example, Java’s String(byte[], Charset) constructor has an optional Charset parameter. When omitted, the platform’s default charset, usually UTF-8, is used. If a user forgets to specify a charset, then the default may corrupt the data during decoding. The charset concern is out-of-band:

// The caller may not realize the platform default charset is being used, which
// may corrupt the data during decoding.
String text = new String(bytes);

On the other hand, Guava, a popular Java library, makes it impossible to produce a CharSource from a ByteSource without specifying a Charset:

String text = ByteSource.wrap(bytes)             // `byte[]` -> `ByteSource`
                        .asCharSource(charset)   // `Charset` required here
                        .read();                 // -> `String`

The required parameter in asCharSource(Charset) moves the charset concern in-band.

Randomization

Randomization can move a concern in-band by preventing users from implicitly depending on deterministic observable behavior.

For example, like HashSet, Java’s HashMap has an unspecified iteration order that users can accidentally depend on.

Google engineers moved this concern in-band by modifying their JDK to randomize hash iteration order. Users would observe the order change between runs of their code and could not unknowingly depend on it. Go took the same step for its maps, randomizing iteration order starting with Go 1.³

UI

Concern signaling applies to UIs too.

Slack’s threading is out-of-band. When a new top-level message arrives in a channel, the UI doesn’t force you to decide between sending another top-level message and replying in a thread. The path of least resistance is to type into the top-level text input, which is always available. The result is that users accidentally reply at the top level all the time.

Google Chat’s threading used to be in-band until Google “upgraded” to Slack’s approach. The original UI forced you to decide between clicking a button to start a new thread and replying in an existing thread’s text input. There was no always-available top-level text input. I never saw users accidentally start a new thread with the original design.

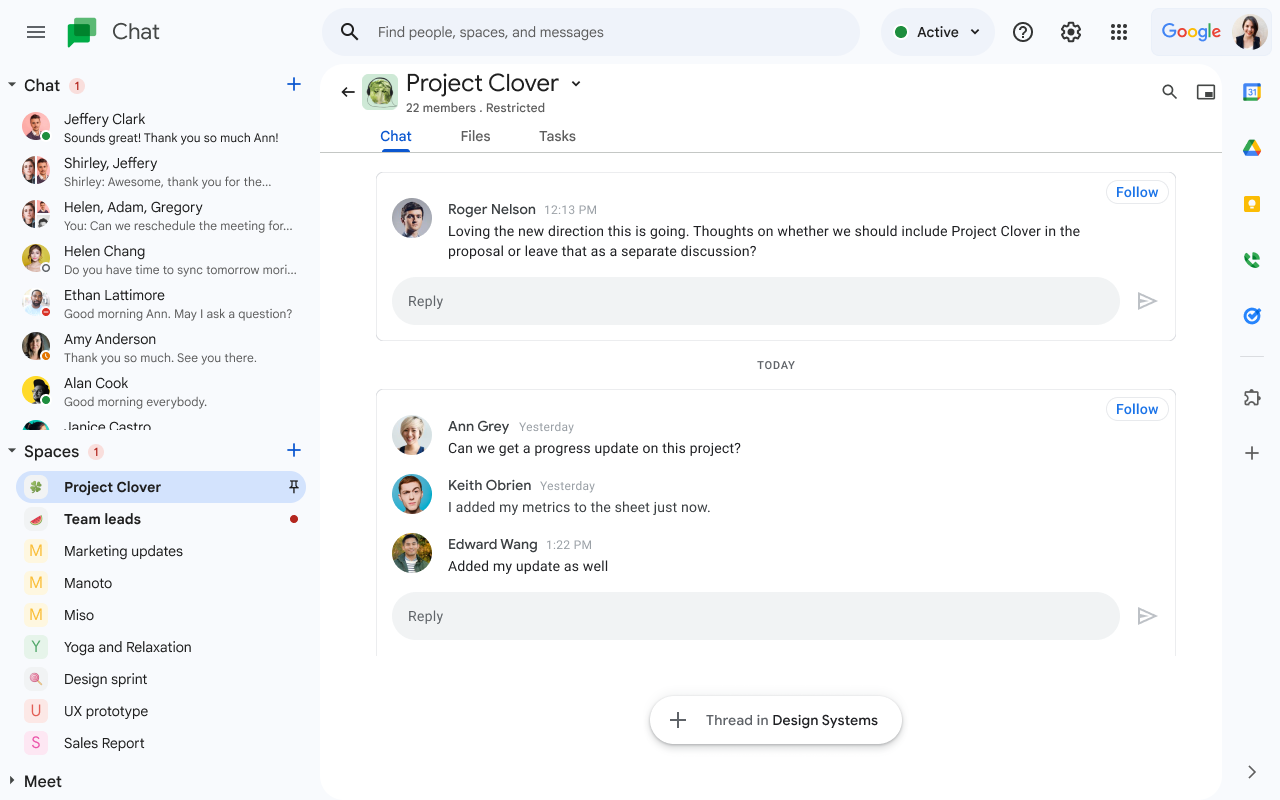

Google Chat’s original design with grouping by conversation topic:

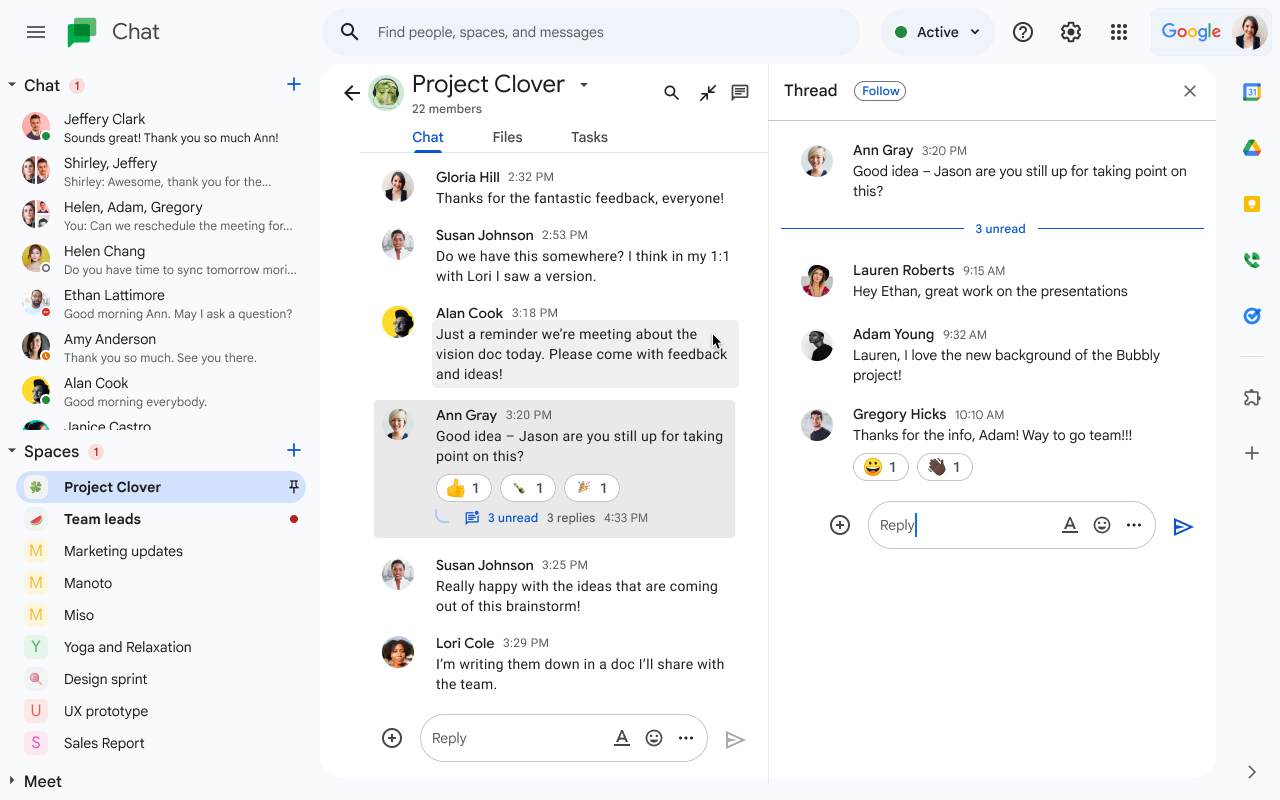

And its new design matching Slack’s inline threading:

Signaling principles

At this point you might think every concern should be in-band, but that’s infeasible. An interface has many concerns and they’re not equally relevant or consequential.

Choosing between in-band and out-of-band signaling is more art than science⁴, but a few principles help:

• Sensible defaults: If a default works for the vast majority of cases, then the concern should likely be out-of-band.

  Examples:

  • JavaScript’s Array.prototype.indexOf(searchElement, fromIndex) function defaults to searching from the first index if fromIndex is unspecified. This is almost always what the user wants.
  • A function that auto-paginates a paginated endpoint can default to a sensible page size. It may not be the most performant choice for all usages, but the result will always be correct.

• Safe defaults: Concerns pertaining to data integrity, privacy, or other security matters must be in-band unless the default is non-destructive, privacy-preserving, and secure.

  Example: Python’s open function defaults to read mode, which is safe because it can’t destroy data.

• Actionability: A concern should only be in-band if the user can usually respond meaningfully at the point of confrontation. Forcing the concern anyway produces a guess or a reflex.

  Examples:

  • Database query timeouts are best tuned after observing production behavior. Forcing the programmer to guess upfront adds noise, not safety.
  • Android originally asked the user to approve an app’s entire permission list at install time, when they had no context for evaluating it, so they tapped through reflexively. Android 6.0 moved the prompts to runtime, confronting the user at the moment the app needs each permission, when they can respond meaningfully.

• Self-revealing: If a concern only matters in cases where the user will naturally discover it, then it should likely be out-of-band.

  Examples:

  • HTTP clients follow redirects by default. If redirects are a problem, then the programmer will notice and disable them. The concern surfaces itself when it becomes relevant.
  • PostgreSQL’s default foreign key action on deletion is NO ACTION, causing deletion of referenced rows to fail. If this behavior turns out to be wrong, then the programmer will notice and specify the right action.

• Audience expectations: The level of rigor an interface’s users have self-selected into can justify making concerns in-band or out-of-band.

  Examples:

  • If you’re using a mutex library, then you’ve opted into caring about correctness edge cases. Rust returning Result from mutex.lock() to surface poisoning in-band is appropriate for that audience.
  • A high-level scripting language like Python defaulting to buffered I/O without requiring the user to choose a buffer size is appropriate for that audience. Most Python users don’t care about I/O performance tuning; they just want to read a file.

• Proportionality: If an interface has many concerns, then some of them should likely be out-of-band to avoid overwhelming the user.

  Example: tls.createServer accepts ~40 options, almost all optional and therefore out-of-band.

The tradeoff

Every in-band concern taxes the user’s attention. Every out-of-band concern risks a silent bug. Designing an interface means choosing which cost to pay for each concern.

Get it wrong in the in-band direction and users drown in ceremony. Get it wrong in the out-of-band direction and users ship latent bugs with confidence.

Get it right and users will fall into the Pit of Success.
